HY302 Paraplegic Patient Lift – Effortless and Safe Mobility Solution

HY302 Paraplegic Patient Lift – Effortless and Safe Mobility Solution

Short Description:

The QX-YW01-1 is a mobile patient lift designed with versatility in mind. This lift is not only ideal for transferring patients to and from the floor, a chair, or bed, but it is also suitable for horizontal lifting and gait training. Instead of investing in multiple pieces of equipment for these tasks, the QX-YW01-1 provides a practical solution for both home care settings and professional care facilities.
This innovative patient lift offers a range of customization options, allowing you to adjust it to best suit the individual needs of each patient. The handlebars are height adjustable, providing comfortable and ergonomic working positions. The mast itself can be adjusted to three different height positions, accommodating a large lifting range between 40cm and 73cm. The standard width sling bar is suitable for most users, but there are also optional accessories available to safely and easily lift patients.
Despite its versatility, this patient lift is simple and easy to use. The electric base can be operated using a hand control, minimizing physical demands on the caregiver. Additionally, the lift is made of lightweight aluminum, making it easy to maneuver. The maintenance-free casters and easily accessible electrical emergency stop button on the control box further enhance safety.


Product Detail

Product Tags

Basic information

Model No.

 HY302

Frame

Aluminum alloy

Motor

24V 8000N

Battery capacity

60-80 times

Noise Level

65dB (A)

Lifting Speed

12mm/s

Maximum Fork Range

800mm

 Load capacity

120kg

Folding Dimension

850x250x940mm

Net weight

19kg

Advantages of our Arc Design Paraplegic Patient Lift

Hygienic and Safe Design: The arc design eliminates the need for contact between users and the patient's lifting arm, ensuring a clean and safe lifting experience.

Effortless Operation: Press a button to control the movement, reducing the physical exertion required from caregivers and enhancing overall efficiency.

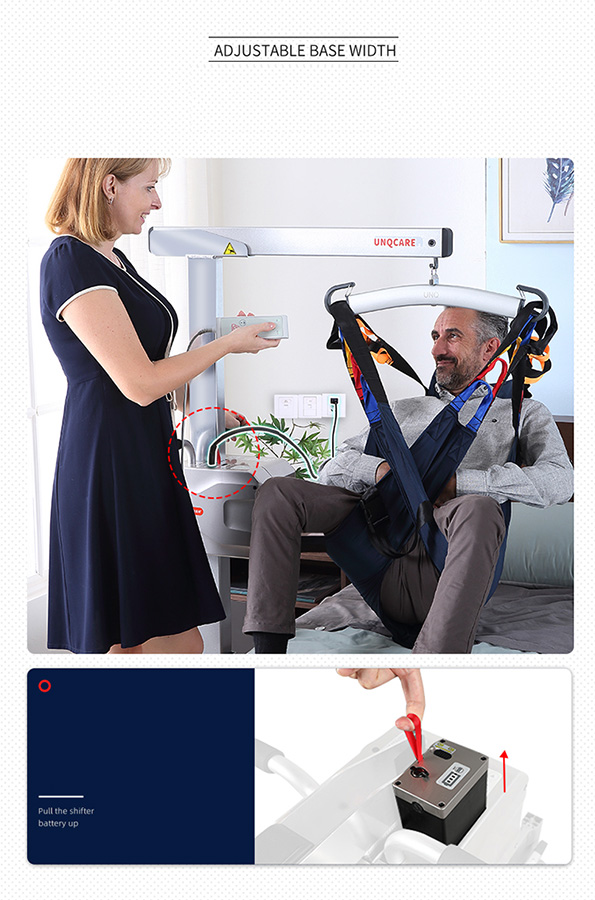

Removable Battery: The lift is equipped with a rechargeable battery that can be conveniently removed and recharged anytime, anywhere, ensuring uninterrupted usage.

patient-lift-1
patient-lift-3
patient-lift-2

Features of our Arc Design Paraplegic Patient Lift

04

1.Unique arc design for hygienic and safe lifting experience

2.User-friendly controls with easy one-button operation

3.Removable and rechargeable battery for convenient and portable power supply
